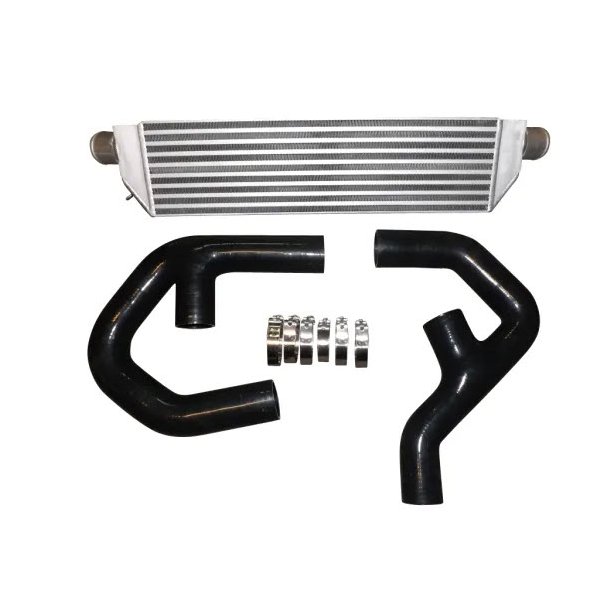

Included: - Additional FMIC intercooler made of aluminum
- 2 black silicone hoses
- 1 aluminum adapter for quick-release fasteners
- 6 clamps
- 2 mounts
- 4 screws + washers
Technical specifications:
- Intercooler core dimensions LxWxH 630x170x70mm
- Overall dimensions LxWxH 870x170x102mm incl. mounts
- Inner diameter of the hoses: ID 60mm
- plug&play up to approx. 340hp
- Add-on to existing stock intercooler, or upgrade - intercooler
suitable for:
- Audi A3 8P 2.0 TFSI 200PS
- Seat Leon 1P 2.0 + FR, Cupra, Cupra R TFSI 200-211PS BWA / CAWB / CZB
- VW Golf 5 + 6 2.0 TFSI 200-230PS AXW / BLR / BLX / BLY / BVY / BVX / BVZ / BYD
- VW Scirocco III 137 2.0 TSI R 2.0 TSI 200-265PS CAWB / CCZB / CDLA
Description:
The intercooler kit is installed in the front between the turbocharger and the intake manifold . It is suitable for the vehicles listed above. The purpose of an intercooler is to cool down the air heated by the turbocharger. By cooling down the compressed air, more air mass enters the combustion chamber at the same volume and more fuel can be burned, thereby increasing performance and efficiency. The lower the charge air temperature, the lower the thermal load on the engine and the turbocharger because it requires less speed for the same air mass. Fuel consumption is also reduced and the engine achieves slightly better emissions values, provided the control unit is adjusted accordingly. Care must be taken to ensure that the intercooler gets as much airflow as possible. The LLK kit offered here is made entirely of aluminum with cast tanks, has 4 mounting points and a Bar`n Plate core. Power up to approx. 340PS is possible. Ideal for motorsport and tuning. Every intercooler is tested up to 5 bar before delivery.
