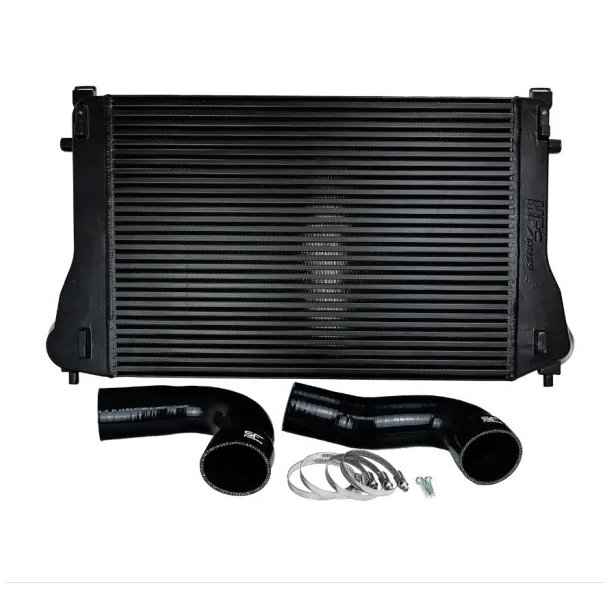

Scope of delivery: - Intercooler kit for Audi A3 8v, Golf 7 GTI R, Seat Leon 5F Cupra, plug-and-play incl. parts certificate (§19.3) and HF-Series logo
Technical specifications:
- Cast aluminum housings
- Bar & Plate core
Fits:
Vehicle EC-BE No. Engine code cm³ Rated Power (kW/RPM)
Audi A3 8V e1*2007/46*0607*.. CJSA/CJSB 1798 132/5100-6200
Audi A3 8V e1*2007/46*0607*.. CZPB 1984 140/4200-6000
Audi A3 8V e1*2007/46*0607*.. CJXC 1984 221/5500-6200
Audi A3 8V e1*2007/46*0607*.. CJXG/DJHA 1984 228/5500-6500
VW Golf 7 AU e1*2007/46*0623*.. CHH 1984 162/4500
VW Golf 7 AU e1*2007/46*0623* CHH 1984 169/4700
VW Golf 7 AU e1*2007/46*0623*.. CJX 1984 221/5500-6200
VW Golf 7 AUV e1*2007/46*0627*.. CJX 1984 221/5500-6200
VW Golf 7 AUV e1*2007/46*0627*.. CJS 1798 132/5000
VW Golf 7 AU e1*2007/46*0623*.. CJXB 1984 206/5100-6500
VW Golf 7 AU/FL e1*2007/46*0623*.. CHHA 1984 169/5000
VW Golf 7 AU/FL e1*2007/46*0623*.. DLBA 1984 180/5500
VW GOLF 7 AU/FL e1*2007/46*0623* DNUC 1984 213/5300-6600 (Fits, but without certificate!)
VW Golf 7 AU/FL e1*2007/46*0623* DJHA 1984 228/5500
VW Golf 7 AUV/FL e1*2007/46*0627*.. DJHA 1984 228/5500
VW Golf 7 AU e1*2007/46*0623*.. CJXE 1984 195/5300-6600
VW Golf 7 AU e1*2007/46*0623*.. CJXG 1984 228/5300-6600
VW Passat B8 e1*2001/116*0307*37- CJSA 1798 132/5100-6200
VW Passat B8 e1*2001/116*0307*37- CHHB 1984 162/4500-6200
VW Passat B8 e1*2001/116*0307*37- CJXA 1984 206/5600-6500
VW T-Roc A1 e13*2007/46*.. CZPB 1984 140/4200-6000
VW T-Roc A1 e13*2007/46*.. DNUE 1984 221/4200-6000 (Fits, but without certificate!)
VW Arteon 3H e1*2007/*2016*.. CZPB 1984 140/4180-6000
VW Arteon 3H e1*2007/46*1725*.. DJHC 1984 206/5600
Seat Leon 5F e9*2007/46*0094*.. CJSA/CJSB 1798 132/5100-6200
Seat Leon 5F e9*2007/46*0094*.. CJXE 1984 195/5350-6500
Seat Leon 5F e9*2007/46*0094*.. CJXA 1984 206/5600-6600
Seat Leon 5F e9*2007/46*0094*.. CJXH 1984 213/5900-6400
Seat Leon 5F e9*2007/46*0094*.. CJXC 1984 221/5500-6200
Seat Leon 5F e9*2007/46*0094*.. CJXG 1984 228/5800-6500
Seat Ateca 5FP e9*2007/46*6394*.. CZPB 1984 140/4180-6000
Skoda Octavia 5E e11*2007/46*0243*.. CJSA/CJSB 1798 132/4500-6200
Skoda Octavia 5E e11*2007/46*0243*.. CHHB 1984 162/4500-6200
Skoda Octavia 5E e11*2007/46*0243*.. CHHA 1984 169/4700-6200
Skoda Octavia 5E e11*2007/46*0243*.. DLBA 1984 180/4700-6200
Skoda Octavia 5E e11*2007/46*0244*.. CJSA/CJSB 1798 132/4500-6200
Skoda Octavia 5E e11*2007/46*0244*.. CHHB 1984 162/4500-6200
Skoda Octavia 5E e11*2007/46*0244*.. CHHA 1984 169/4700-6200
Skoda Octavia 5E e11*2007/46*0244*.. DLBA 1984 180/4700-6200
Skoda Superb 3T e11*2001/116*0326*32- CJXA 1984 206/5600-6500
Skoda Superb 3T e11*2007/46*0014*22- CJXA 1984 206/5600-6500
Product description:
The upgraded intercooler is installed at the front, between the turbocharger and the intake manifold. It simply replaces the original one-for-one. The purpose of an intercooler is to cool down the air heated by the turbocharger. By cooling the compressed air, more air mass enters the combustion chamber at the same volume, so more fuel can be burned, thus increasing power and efficiency. The lower the charge air temperature, the lower the thermal load on the engine, and on the turbocharger because it needs less RPM for the same air mass. Fuel consumption is also reduced and the engine receives somewhat better emissions, provided the ECU is adjusted accordingly. Make sure the intercooler receives as much airflow as possible. The coolers can be used in turbocharged diesel and gasoline engines. The intercooler offered here is made completely of aluminum with cast end tanks and has a bar and plate core, ideal for motorsport and tuning. Each intercooler is tested up to 5 bar before delivery.
